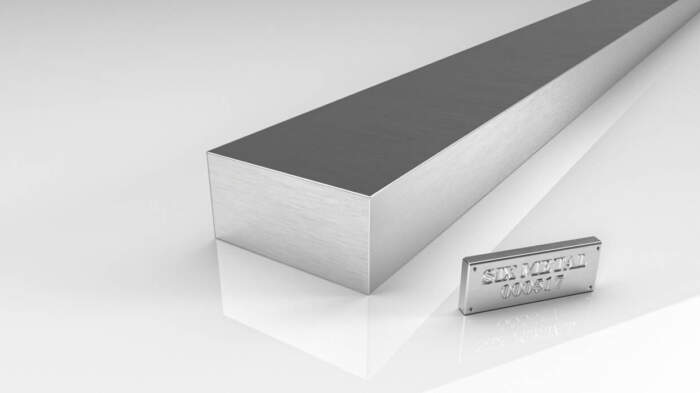

Aluminium rectangular bars, also known as aluminium flat bars, are extruded profiles made from aluminium alloy that have a rectangular cross-section. They are commonly used in construction, manufacturing, and DIY projects for their strength, durability, and corrosion resistance.
The dimensions of aluminium rectangular bars can vary depending on the application, but they typically range in size from 10mm to 150mm in width, with heights ranging from 1mm to 50mm, and lengths ranging from 1m to 6m.
These profiles can be used in a variety of applications, including framework, supports, and trim. They can also be easily cut, drilled, and welded to suit specific project requirements.
When selecting aluminium rectangular bars, it is important to consider the alloy type, temper, and finish. The most common alloys used for aluminium rectangular bars are 6061-T6 and 6063-T6. The finish can be mill finish, anodized, or powder-coated, depending on the desired appearance and level of corrosion resistance.
Aluminium rectangular bars are ideal for creating a flat surface for support or for attaching other components. They can also be used as decorative trim or as a transition between different types of flooring.
Rectangular Bars
Product Diagram & Dimensions
| a | b | kg/m |
| 6,35 | 3,2 | 0,055 |
| 10 | 2,5 | 0,068 |
| 10 | 7 | 0,190 |
| 10 | 8 | 0,2117 |
| 10,1 | 5,1 | 0,140 |
| 11,6 | 5 | 0,157 |
| 12 | 7,8 | 0,254 |
| 13 | 8 | 0,282 |
| 13 | 12 | 0,423 |
| 13,3 | 6 | 0,216 |
| 14 | 4 | 0,152 |
| 15 | 2 | 0,081 |
| 15 | 3 | 0,122 |
| 15 | 3 | 0,122 |
| 15 | 5 | 0,203 |
| 16 | 3 | 0,130 |
| 18 | 3 | 0,146 |
| 19 | 4 | 0,206 |
| 20 | 3 | 0,163 |
| 20 | 2 | 0,108 |
| 20 | 3,5 | 0,190 |
| 20 | 5 | 0,271 |
| 20 | 6 | 0,325 |
| 20 | 8 | 0,434 |
| 20 | 9 | 0,488 |
| 20 | 10 | 0,542 |
| 20 | 15 | 0,813 |
| 25 | 1,7 | 0,115 |
| 25 | 3 | 0,203 |
| 25 | 5 | 0,339 |
| 25 | 10 | 0,678 |
| 26 | 2,5 | 0,176 |
| 29,5 | 3 | 0,240 |
| 30 | 2 | 0,163 |
| 30 | 3 | 0,244 |
| 30 | 4 | 0,325 |
| 30 | 5 | 0,407 |
| 30 | 7 | 0,569 |
| 30 | 10 | 0,813 |
| 30 | 20 | 1,626 |
| 34 | 2 | 0,184 |
| 34 | 7 | 0,645 |
| 35 | 1,7 | 0,161 |
| 35 | 2 | 0,190 |
| 35 | 8 | 0,759 |
| 40 | 1,2 | 0,130 |
| 40 | 2 | 0,217 |
| 40 | 2 | 0,217 |
| 40 | 3 | 0,325 |
| 40 | 3,5 | 0,379 |
| 40 | 4 | 0,434 |
| 40 | 5 | 0,542 |
| 40 | 10 | 1,084 |
| 40 | 15 | 1,626 |
| 40 | 20 | 2,168 |
| 50 | 1,5 | 0,203 |
| 50 | 2 | 0,271 |
| 50 | 3 | 0,407 |
| 50 | 4 | 0,542 |
| 50 | 5 | 0,678 |
| 50 | 8 | 1,084 |
| 50 | 10 | 1,355 |
| 50 | 15 | 2,033 |
| 50 | 15 | 2,033 |
| 50 | 20 | 2,710 |
| 50 | 30 | 4,065 |
| 51 | 4 | 0,553 |
| 55 | 5,5 | 0,820 |
| 55 | 7 | 1,043 |
| 55 | 9,5 | 1,416 |
| 55 | 11,5 | 1,714 |
| 55 | 14,5 | 2,161 |
| 55 | 22,5 | 3,354 |
| 55 | 8 | 1,192 |
| 60 | 1,3 | 0,211 |
| 60 | 1,5 | 0,244 |
| 60 | 4 | 0,650 |
| 60 | 4,5 | 0,732 |
| 60 | 5 | 0,813 |
| 60 | 6 | 0,976 |
| 60 | 10 | 1,626 |
| 60 | 12 | 1,951 |
| 60 | 15 | 2,439 |
| 60 | 20 | 3,252 |
| 60 | 30 | 4,878 |
| 60 | 40 | 6,504 |
| 62 | 31 | 5,209 |
| 65 | 13 | 2,290 |
| 66 | 2 | 0,358 |
| 70 | 9,9 | 1,878 |
| 70 | 12 | 2,276 |
| 70 | 16 | 3,035 |
| 74 | 1 | 0,201 |
| 75 | 5 | 1,016 |
| 77 | 3 | 0,626 |
| 80 | 2 | 0,434 |
| 80 | 3 | 0,650 |
| 80 | 12 | 2,602 |
| 80 | 21,5 | 4,661 |
| 80 | 1,4 | 0,304 |
| 80 | 5 | 1,084 |
| 80 | 8 | 1,734 |
| 80 | 9,9 | 2,146 |
| 80 | 10 | 2,168 |
| 100 | 15 | 4,065 |
| 100 | 20 | 5,420 |
| 100 | 25 | 6,775 |
| 100 | 30 | 8,130 |
| 100 | 40 | 10,840 |
| 100 | 50 | 13,550 |
| 100 | 50 | 13,550 |
| 100 | 70 | 18,970 |
| 102 | 20 | 5,528 |
| 102 | 25 | 6,911 |
| 102 | 30 | 8,293 |
| 108 | 8 | 2,341 |
| 110 | 5 | 1,491 |
| 110 | 6 | 1,789 |
| 111 | 2 | 0,602 |
| 117 | 11 | 3,488 |
| 120 | 5 | 1,626 |
| 120 | 10 | 3,252 |
| 120 | 12 | 3,902 |
| 120 | 15 | 4,878 |
| 120 | 20 | 6,504 |
| 120 | 28 | 9,106 |
| 130 | 8 | 2,818 |
| 135 | 4 | 1,463 |
| 135 | 6 | 2,195 |
| 140 | 20 | 7,588 |
| 145 | 1,5 | 0,589 |
| 150 | 8 | 3,252 |
| 150 | 5,1 | 2,073 |
| 150 | 10 | 4,065 |
| 150 | 12 | 4,878 |
| 150 | 15 | 6,098 |
| 150 | 20 | 8,130 |
| 150 | 25 | 10,163 |
| 150 | 30 | 12,195 |
| 156 | 4 | 1,691 |
| 160 | 3 | 1,301 |
| 160 | 10 | 4,336 |
| 164 | 34 | 15,111 |
| 170 | 1 | 0,461 |
| 170 | 8 | 3,686 |
| 200 | 5 | 2,710 |
| 200 | 20 | 10,840 |
| 200 | 25 | 13,550 |
| 245 | 8 | 5,312 |
| a | b | lb/ft |
| 0,25 | 0,13 | 0,037 |
| 0,39 | 0,10 | 0,046 |
| 0,39 | 0,28 | 0,128 |
| 0,39 | 0,31 | 0,146 |
| 0,40 | 0,20 | 0,094 |
| 0,46 | 0,20 | 0,105 |
| 0,47 | 0,31 | 0,171 |
| 0,51 | 0,31 | 0,189 |
| 0,51 | 0,47 | 0,284 |
| 0,52 | 0,24 | 0,145 |
| 0,55 | 0,16 | 0,102 |
| 0,59 | 0,08 | 0,054 |
| 0,59 | 0,12 | 0,082 |
| 0,59 | 0,12 | 0,082 |
| 0,59 | 0,20 | 0,139 |
| 0,63 | 0,12 | 0,087 |
| 0,71 | 0,12 | 0,098 |
| 0,75 | 0,16 | 0,138 |
| 0,79 | 0,12 | 0,110 |
| 0,79 | 0,08 | 0,073 |
| 0,79 | 0,14 | 0,128 |
| 0,79 | 0,20 | 0,182 |
| 0,79 | 0,24 | 0,218 |
| 0,79 | 0,31 | 0,292 |
| 0,79 | 0,35 | 0,328 |
| 0,79 | 0,39 | 0,364 |
| 0,79 | 0,59 | 0,546 |
| 0,98 | 0,07 | 0,077 |
| 0,98 | 0,12 | 0,136 |
| 0,98 | 0,20 | 0,228 |
| 0,98 | 0,39 | 0,456 |
| 1,02 | 0,10 | 0,118 |
| 1,16 | 0,12 | 0,161 |
| 1,18 | 0,08 | 0,110 |
| 1,18 | 0,12 | 0,164 |
| 1,18 | 0,16 | 0,218 |
| 1,18 | 0,20 | 0,273 |
| 1,18 | 0,28 | 0,382 |
| 1,18 | 0,39 | 0,546 |
| 1,18 | 0,59 | 0,820 |
| 1,18 | 0,79 | 1,093 |
| 1,34 | 0,08 | 0,124 |
| 1,34 | 0,28 | 0,433 |
| 1,34 | 0,07 | 0,108 |
| 1,38 | 0,31 | 0,510 |
| 1,57 | 0,05 | 0,087 |
| 1,57 | 0,08 | 0,146 |
| 1,57 | 0,08 | 0,146 |
| 1,57 | 0,12 | 0,218 |
| 1,57 | 0,14 | 0,255 |
| 1,57 | 0,16 | 0,292 |
| 1,57 | 0,20 | 0,364 |
| 1,57 | 0,39 | 0,728 |
| 1,57 | 0,59 | 1,093 |
| 1,57 | 0,79 | 1,457 |
| 1,97 | 0,06 | 0,136 |
| 1,97 | 0,08 | 0,182 |
| 1,97 | 0,12 | 0,273 |
| 1,97 | 0,16 | 0,364 |
| 1,97 | 0,20 | 0,456 |
| 1,97 | 0,31 | 0,728 |
| 1,97 | 0,39 | 0,911 |
| 1,97 | 0,59 | 1,366 |
| 1,97 | 0,59 | 1,366 |
| 1,97 | 0,79 | 1,821 |
| 1,97 | 1,18 | 2,732 |
| 2,01 | 0,16 | 0,372 |
| 2,17 | 0,22 | 0,551 |
| 2,17 | 0,28 | 0,701 |
| 2,17 | 0,37 | 0,952 |
| 2,17 | 0,45 | 1,152 |
| 2,17 | 0,57 | 1,452 |
| 2,17 | 0,89 | 2,254 |
| 2,17 | 0,31 | 0,801 |
| 2,36 | 0,05 | 0,142 |
| 2,36 | 0,06 | 0,164 |
| 2,36 | 0,16 | 0,437 |
| 2,36 | 0,18 | 0,492 |
| 2,36 | 0,20 | 0,546 |
| 2,36 | 0,24 | 0,656 |
| 2,36 | 0,39 | 1,093 |
| 2,36 | 0,47 | 1,311 |
| 2,36 | 0,59 | 1,639 |
| 2,36 | 0,79 | 2,185 |
| 2,36 | 1,18 | 3,278 |
| 2,36 | 1,57 | 4,370 |
| 2,44 | 1,22 | 3,500 |
| 2,56 | 0,51 | 1,539 |
| 2,60 | 0,08 | 0,241 |
| 2,76 | 0,39 | 1,262 |
| 2,76 | 0,47 | 1,529 |
| 2,76 | 0,63 | 2,039 |
| 2,91 | 0,04 | 0,135 |
| 2,95 | 0,20 | 0,683 |
| 3,03 | 0,12 | 0,421 |
| 3,15 | 0,08 | 0,292 |
| 3,15 | 0,12 | 0,437 |
| 3,15 | 0,47 | 1,748 |
| 3,15 | 0,85 | 3,132 |
| 3,15 | 0,06 | 0,204 |
| 3,15 | 0,20 | 0,728 |
| 3,15 | 0,31 | 1,165 |
| 3,15 | 0,39 | 1,442 |
| 3,15 | 0,39 | 1,457 |
| 3,94 | 0,59 | 2,732 |
| 3,94 | 0,79 | 3,642 |
| 3,94 | 0,98 | 4,553 |
| 3,94 | 1,18 | 5,463 |
| 3,94 | 1,57 | 7,284 |
| 3,94 | 1,97 | 9,105 |
| 3,94 | 2,36 | 10,926 |
| 3,94 | 2,76 | 12,747 |
| 4,02 | 0,79 | 3,715 |
| 4,02 | 0,98 | 4,644 |
| 4,02 | 1,18 | 5,573 |
| 4,25 | 0,31 | 1,573 |
| 4,33 | 0,20 | 1,002 |
| 4,33 | 0,24 | 1,202 |
| 4,37 | 0,08 | 0,405 |
| 4,61 | 0,43 | 2,344 |
| 4,72 | 0,20 | 1,093 |
| 4,72 | 0,39 | 2,185 |
| 4,72 | 0,47 | 2,622 |
| 4,72 | 0,59 | 3,278 |
| 4,72 | 0,79 | 4,370 |
| 4,72 | 1,10 | 6,119 |
| 5,12 | 0,31 | 1,894 |
| 5,31 | 0,16 | 0,983 |
| 5,31 | 0,24 | 1,475 |
| 5,51 | 0,79 | 5,099 |
| 5,71 | 0,06 | 0,396 |
| 5,91 | 0,31 | 2,185 |
| 5,91 | 0,20 | 1,393 |
| 5,91 | 0,39 | 2,732 |
| 5,91 | 0,47 | 3,278 |
| 5,91 | 0,59 | 4,098 |
| 5,91 | 0,79 | 5,463 |
| 5,91 | 0,98 | 6,829 |
| 5,91 | 1,18 | 8,195 |
| 6,14 | 0,16 | 1,136 |
| 6,30 | 0,12 | 0,874 |
| 6,30 | 0,39 | 2,914 |
| 6,46 | 1,34 | 10,154 |
| 6,69 | 0,04 | 0,310 |
| 6,69 | 0,31 | 2,477 |
| 7,87 | 0,20 | 1,821 |
| 7,87 | 0,79 | 7,284 |
| 7,87 | 0,98 | 9,105 |
| 9,65 | 0,31 | 3,569 |
